更多>>32.768K振蕩器TC50V5C32K7680具有低相位抖動性能的實時時鐘參考
來源：http://ljnshy.cn 作者：帝國科技 2023年06月06
晶振素有“工業之鹽”之稱，可以說，有電子產品的地方就有石英晶振，像人類的“心臟”一樣，每時每刻穩定地發送著時鐘信號，使數字電路正常運轉。時鐘晶體振蕩器是利用了晶體的壓電效應制造的,當在晶片的兩面上加交變電壓時，晶片會反復的機械變形而產生振動，而這種機械振動又會反過來產生交變電壓。32.768K振蕩器TC50V5C32K7680具有低相位抖動性能的實時時鐘參考

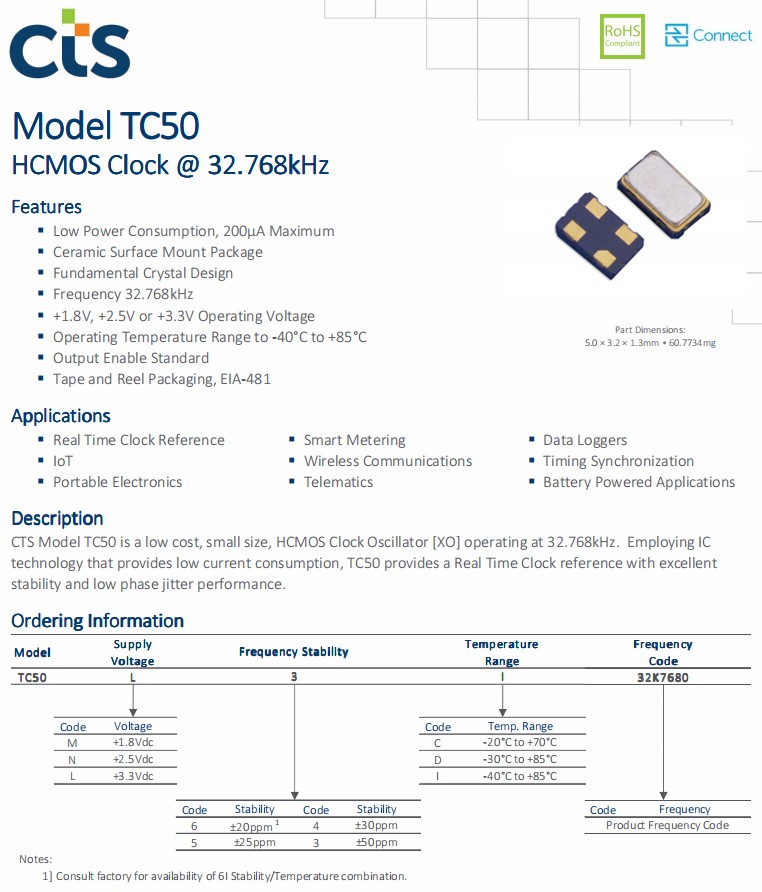

32.768K振蕩器TC50V5C32K7680具有低相位抖動性能的實時時鐘參考，CTS晶振型號TC50，是一款小尺寸5.0x3.2x1.3mm封裝，四腳貼片晶振，有源晶振，石英晶體振蕩器，HCMOS時鐘振蕩器[XO]，頻率32.768kHz，TC50采用了提供低電流消耗的IC技術，提供了一個具有優異的穩定性和低相位抖動性能的實時時鐘參考。
32.768K振蕩器TC50V5C32K7680具有低相位抖動性能的實時時鐘參考

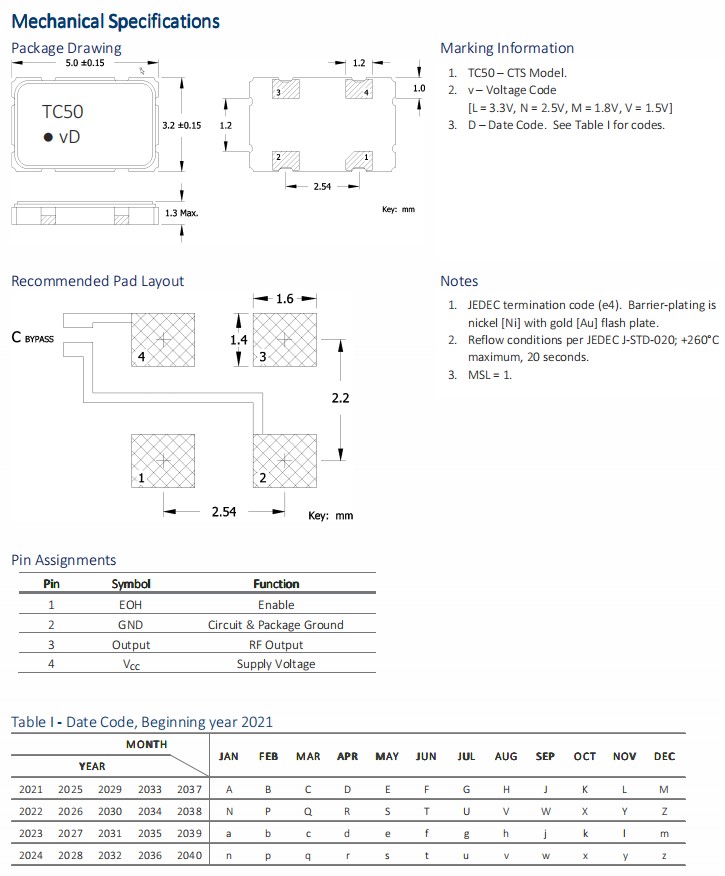

TC50晶振特點：尺寸5.0x3.2x1.3mm貼片晶振，低功耗，最大值為200µA，陶瓷表面安裝封裝，基本水晶設計，+1.8V，+2.5V或+3.3V工作電壓，工作溫度范圍：-40°C到+85°C，
應用于：實時時鐘參考，物聯網，便攜式電子產品，智能計量，無線通信，遠程信息通信，數據記錄器，定時同步，電池供電的應用程序。
32.768K振蕩器TC50V5C32K7680具有低相位抖動性能的實時時鐘參考，CTS晶振型號TC50，是一款小尺寸5.0x3.2x1.3mm封裝，四腳貼片晶振，有源晶振，石英晶體振蕩器，HCMOS時鐘振蕩器[XO]，頻率32.768kHz，TC50采用了提供低電流消耗的IC技術，提供了一個具有優異的穩定性和低相位抖動性能的實時時鐘參考。
| 原廠代碼 | 晶振工廠 | 型號 | 頻率 | 頻率穩定度 | 包裝/封裝 |
| TC50L5I32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50L3C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50V3A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50N3C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50M3C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50V3C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50L3A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50N3A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50M3A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50L3I32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50N3I32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50M3I32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50V3I32K7680 | CTS晶振 | TC50 | 32.768kHz | ±50ppm | 4-SMD, No Lead |
| TC50V5A32K7680 | CTS晶振 | TC50 | 32.768k | ±25ppm | 4-SMD, No Lead |
| TC50N5C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50M5C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50L5A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50N5A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50M5A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50N5I32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50M5I32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50V5I32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50L5C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50V5C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±25ppm | 4-SMD, No Lead |
| TC50N6C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±20ppm | 4-SMD, No Lead |
| TC50M6C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±20ppm | 4-SMD, No Lead |
| TC50V6C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±20ppm | 4-SMD, No Lead |
| TC50L6C32K7680 | CTS晶振 | TC50 | 32.768kHz | ±20ppm | 4-SMD, No Lead |
| TC50L6A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±20ppm | 4-SMD, No Lead |
| TC50N6A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±20ppm | 4-SMD, No Lead |
| TC50V6A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±20ppm | 4-SMD, No Lead |
| TC50M6A32K7680 | CTS晶振 | TC50 | 32.768kHz | ±20ppm | 4-SMD, No Lead |
TC50晶振特點：尺寸5.0x3.2x1.3mm貼片晶振，低功耗，最大值為200µA，陶瓷表面安裝封裝，基本水晶設計，+1.8V，+2.5V或+3.3V工作電壓，工作溫度范圍：-40°C到+85°C，
應用于：實時時鐘參考，物聯網，便攜式電子產品，智能計量，無線通信，遠程信息通信，數據記錄器，定時同步，電池供電的應用程序。
