- 規格型號：33026774
- 頻率：16.9344MHz

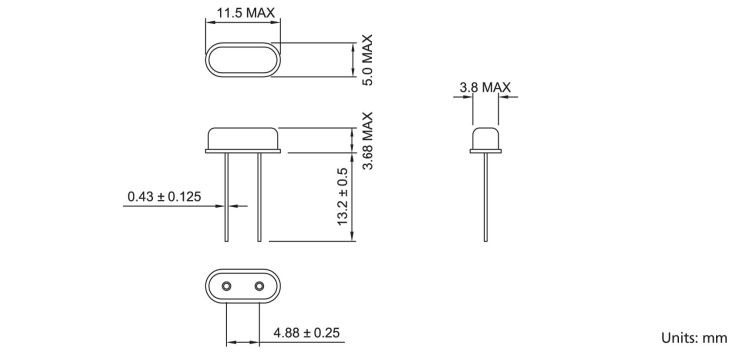

- 尺寸：11.5*5.0
- 產品描述：汽車時鐘晶振,臺產TXC晶體,AS-16.9344MAGI-B晶振，臺灣晶技晶振公司，插件晶振,超小型晶振，小型汽車晶振，車載收音機晶振，實時時鐘晶振，汽車級晶振，無源晶振，車載USB晶振，高精度晶振，耐高溫晶振，高品質晶振，...
汽車時鐘晶振,臺產TXC晶體,AS-16.9344MAGI-B晶振

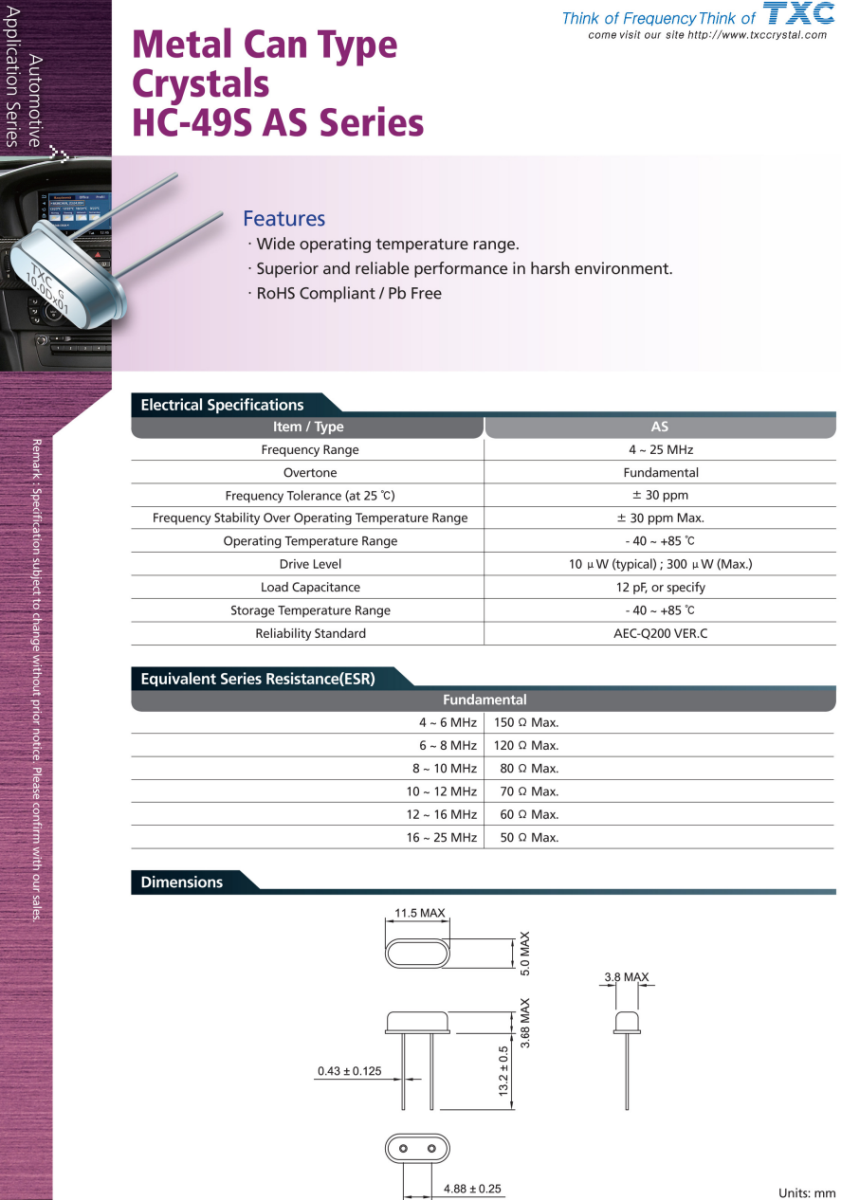

汽車時鐘晶振,臺產TXC晶體,AS-16.9344MAGI-B晶振，臺灣晶技晶振公司，插件晶振,超小型晶振，小型汽車晶振，車載收音機晶振，實時時鐘晶振，汽車級晶振，無源晶振，車載USB晶振，高精度晶振，耐高溫晶振，高品質晶振，臺產晶振，49S晶振，插件晶振，低成本晶振，石英晶振HC-49SAS系列金屬罐類型晶體,特點:工作溫度范圍寬。惡劣環境下性能優越可靠。符合RoHS指令/不含Pb.
| 型號 | AS |
| 頻率范圍 | 4 MHz ~ 25 MHz |
| 工作模式 | Fundamental |
| 頻率容差 | ± 30 ppm |
| 溫度范圍內的頻率穩定度 | ± 30 ppm Max. |
| 工作溫度 | - 40 ~ +85 ℃ |
| 驅動電平 | 10 μW (typical) ; 300 μW (Max.) |
| 負載電容 | 12 pF, or specify |
| 儲存溫度范圍 | - 40 ~ +85 ℃ |
| 可靠性標準 | AEC-Q200VER.C |
| TXC原廠編碼 | 生產商品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| AS-4.194304MAHE-B | TXC晶振 | AS | 4.194304MHz | ±30ppm | ±30ppm | 12pF |
| AS-10.000MDHI-B | TXC晶振 | AS | 10MHz | ±30ppm | ±20ppm | 16pF |
| AS-11.0592MAHI-B | TXC晶振 | AS | 11.0592MHz | ±30ppm | ±30ppm | 16pF |
| AS-11.2896MAGQ-B | TXC晶振 | AS | 11.2896MHz | ±50ppm | ±30ppm | 10pF |
| AS-12.000MAQL-B | TXC晶振 | AS | 12MHz | ±30ppm | ±30ppm | 22pF |
| AS-12.000MDHK-B | TXC晶振 | AS | 12MHz | ±30ppm | ±20ppm | 20pF |
| AS-13.560MDIE-B | TXC晶振 | AS | 13.56MHz | ±20ppm | ±20ppm | 12pF |
| AS-14.31818MDHI-B | TXC晶振 | AS | 14.31818MHz | ±30ppm | ±20ppm | 16pF |
| AS-16.000MAGE-B | TXC晶振 | AS | 16MHz | ±50ppm | ±30ppm | 12pF |
| AS-16.9344MAGH-B | TXC晶振 | AS | 16.9344MHz | ±50ppm | ±30ppm | 15pF |
| AS-3.579545MDHE-B | TXC晶振 | AS | 3.579545MHz | ±30ppm | ±20ppm | 15pF |
| AS-4.000MAGJ-B | TXC晶振 | AS | 4MHz | ±50ppm | ±30ppm | 18pF |
| AS-4.000MAHH-B | TXC晶振 | AS | 4MHz | ±30ppm | ±30ppm | 15pF |
| AS-4.000MDGJ-B | TXC晶振 | AS | 4MHz | ±50ppm | ±20ppm | 18pF |
| AS-4.000MDHK-B | TXC晶振 | AS | 4MHz | ±30ppm | ±20ppm | 20pF |
| AS-4.000MEHK-B | TXC晶振 | AS | 4MHz | ±30ppm | ±10ppm | 20pF |
| AS-8.000MAGE-B | TXC晶振 | AS | 8MHz | ±50ppm | ±30ppm | 12pF |
| AS-8.000MAHI-B | TXC晶振 | AS | 8MHz | ±30ppm | ±30ppm | 16pF |
| AS-3.579545MAHE-B | TXC晶振 | AS | 3.579545MHz | ±30ppm | ±30ppm | 12pF |
| AS-4.000MAHK-B | TXC晶振 | AS | 4MHz | ±30ppm | ±30ppm | 20pF |
| AS-8.000MAHK-B | TXC晶振 | AS | 8MHz | ±30ppm | ±30ppm | 20pF |
| AS-10.000MAHI-B | TXC晶振 | AS | 10MHz | ±30ppm | ±30ppm | 16pF |
| AS-11.2896MAHK-B | TXC晶振 | AS | 11.2896MHz | ±30ppm | ±30ppm | 20pF |
| AS-13.225625MAHK-B | TXC晶振 | AS | 13.225625MHz | ±30ppm | ±30ppm | 20pF |
| AS-13.560MAHE-B | TXC晶振 | AS | 13.56MHz | ±30ppm | ±30ppm | 12pF |
| AS-14.31818MAHI-B | TXC晶振 | AS | 14.31818MHz | ±30ppm | ±30ppm | 16pF |
| AS-16.000MAHK-B | TXC晶振 | AS | 16MHz | ±30ppm | ±30ppm | 20pF |
| AS-16.9344MAHH-B | TXC晶振 | AS | 16.9344MHz | ±30ppm | ±30ppm | 15pF |
| AS-20.500MAHQ-B | TXC晶振 | AS | 20.5MHz | ±30ppm | ±30ppm | 10pF |
| AS-28.63636MAHE-B | TXC晶振 | AS | 28.63636MHz | ±30ppm | ±30ppm | 12pF |
| AS-12.000MAHK-B | TXC晶振 | AS | 12MHz | ±30ppm | ±30ppm | 20pF |
| AS-16.9344MAGI-B | TXC晶振 | AS | 16.9344MHz | ±50ppm | ±30ppm | 16pF |
| AS16000001 | TXC晶振 | AS | 16MHz | ±50ppm | ±30ppm | 12pF |
