- 規格型號：43835692
- 頻率：38.4MHZ
- 尺寸：2.5*2.0mm
- 產品描述：425F35B038M4000-2520mm-38.4MHZ-物聯網專用-CTS425,尺寸為2520mm,頻率為38.4MHZ,美國西迪斯晶振，CTS晶振，石英晶體諧振器，無源貼片晶振，石英晶振，超小型晶振，貼片晶振，無源晶振，高質量晶振，物聯網晶振，便攜...
425F35B038M4000-2520mm-38.4MHZ-物聯網專用-CTS425
425F35B038M4000-2520mm-38.4MHZ-物聯網專用-CTS425,尺寸為2520mm,頻率為38.4MHZ,美國西迪斯晶振，CTS晶振，石英晶體諧振器，無源貼片晶振，石英晶振，超小型晶振，貼片晶振，無源晶振，高質量晶振，物聯網晶振，便攜式設備晶振，聯網應用專用晶振，無線通信晶振，計算機專用晶振，外圍設備晶振。
石英晶振產品主要應用范圍：物聯網和工業物聯網應用,無線通信,FPGA ,微控制器,USB接口,計算機外圍設備,便攜式設備等領域.425F35B038M4000-2520mm-38.4MHZ-物聯網專用-CTS425.
425F35B038M4000-2520mm-38.4MHZ-物聯網專用-CTS425 參數表
| P AR AMETER | S YMB OL | C ON DITION S | MI N | TYP | MAX | U NI T | ||||||||||||||||||||||||
| Operating Temperature | TA | - |
-20 -30 -40 -40 |
+25 |
+70 +85 +85 +105 |
°C | ||||||||||||||||||||||||
| Storage Temperature | TSTG | - | -40 | - | +125 | °C | ||||||||||||||||||||||||
| Frequency Stability | ||||||||||||||||||||||||||||||
| P AR AMETER | S YMB OL | C ON DITION S | MI N | TYP | MAX | U NI T | ||||||||||||||||||||||||
| Frequency Range |
 O |
- | 12 - 80 | MHz | ||||||||||||||||||||||||||
| FrequencyTolerance | Δf/fO | @ +25°C | 10, 15, 20, 25 or 30 | ±ppm | ||||||||||||||||||||||||||
| Frequen cyStabilit y | Δf/f25 | Referenced to +25°C reading | 10, 15, 20, 25, 30 or 50 | ±ppm | ||||||||||||||||||||||||||
| Aging | Δf/f0 | Typical per year @ +25°C | -3 - 3 | ppm | ||||||||||||||||||||||||||
| Crystal Parameters | ||||||||||||||||||||||||||||||
| P AR AMETER | S YMB OL | C ON DITION S | MI N | TYP | MAX | U NI T | ||||||||||||||||||||||||
| Op er at in g Mo d e | - | - | Fundamental | - | ||||||||||||||||||||||||||
| Cr y st al Cu t | - | - | AT-Cut Strip | - | ||||||||||||||||||||||||||
| L o ad C ap ac it an c e | CL | - | See Ordering Information | pF | ||||||||||||||||||||||||||
| S h u n t C ap ac it an c e | C0 | - | - 1.0 3.0 | pF | ||||||||||||||||||||||||||
|
S er ies R esist an c e F u n d am en t al |
R1 |
12MHz - <16MHz 16MHz - <22MHz 22MHz - <30MHz 30MHz - <36MHz 36MHz - 80MHz |
- - 150 - - 100 - - 80 - - 60 - - 50 |
Ω | ||||||||||||||||||||||||||
| D r iv e L ev el | DL | - | - 10 200 | µW | ||||||||||||||||||||||||||
| I n su lat io n R esist an c e | Ri | +100Vdc ±15Vdc | 500 - - | MΩ | ||||||||||||||||||||||||||

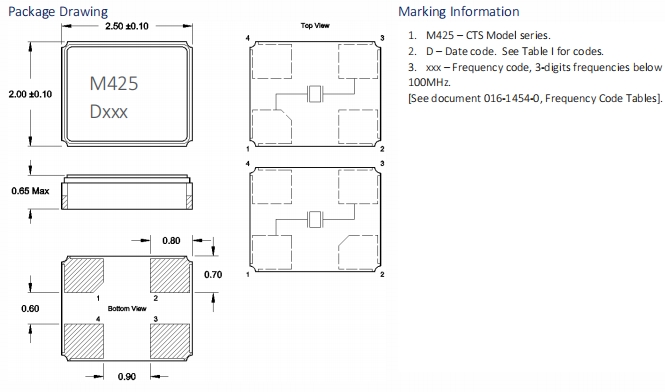

425F35B038M4000-2520mm-38.4MHZ-物聯網專用-CTS425 尺寸圖

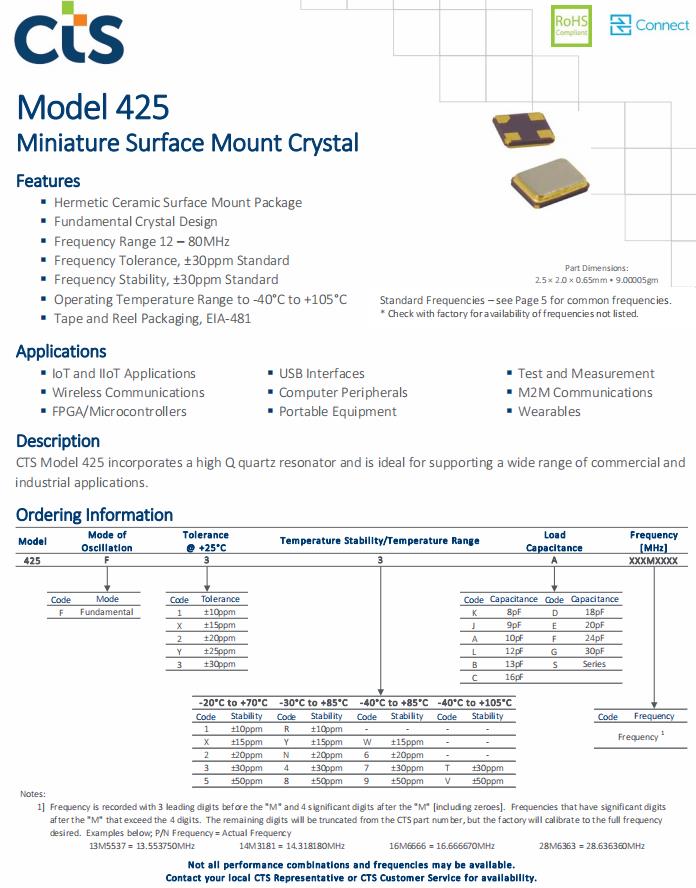

特點：
·密封陶瓷表面貼裝封裝
基本晶體設計
頻率范圍12-80MHz
頻率公差，±30ppm標準
頻率穩定性，±30ppm標準
工作溫度范圍-40℃~+105℃
磁帶和卷軸包裝，EIA-481
更多相關的CTS晶振型號
| 歐美晶振原廠編碼 | 廠家 | 型號 | 系列 | 頻率 |
| 425F22A024M0000 | CTS晶振 | 425 | MHz Crystal | 24MHz |
| 425F22A020M0000 | CTS晶振 | 425 | MHz Crystal | 20MHz |
| 425F35B040M0000 | CTS晶振 | 425 | MHz Crystal | 40MHz |
| 425F35B026M0000 | CTS晶振 | 425 | MHz Crystal | 26MHz |
| 425F35B038M4000 | CTS晶振 | 425 | MHz Crystal | 38.4MHz |
| 425F35E016M0000 | CTS晶振 | 425 | MHz Crystal | 16MHz |
| 425F35E020M0000 | CTS晶振 | 425 | MHz Crystal | 20MHz |
| 425F35E024M0000 | CTS晶振 | 425 | MHz Crystal | 24MHz |
| 425F35E025M0000 | CTS晶振 | 425 | MHz Crystal | 25MHz |
| 425F35E030M0000 | CTS晶振 | 425 | MHz Crystal | 30MHz |
| 425F35E040M0000 | CTS晶振 | 425 | MHz Crystal | 40MHz |
| 425F39B016M0000 | CTS晶振 | 425 | MHz Crystal | 16MHz |
| 425F39B020M0000 | CTS晶振 | 425 | MHz Crystal | 20MHz |
| 425F39B024M0000 | CTS晶振 | 425 | MHz Crystal | 24MHz |
| 425F39B025M0000 | CTS晶振 | 425 | MHz Crystal | 25MHz |
| 425F39B027M0000 | CTS晶振 | 425 | MHz Crystal | 27MHz |
| 425F39B030M0000 | CTS晶振 | 425 | MHz Crystal | 30MHz |
| 425F39B040M0000 | CTS晶振 | 425 | MHz Crystal | 40MHz |
| 425F39E016M0000 | CTS晶振 | 425 | MHz Crystal | 16MHz |
| 425F39E020M0000 | CTS晶振 | 425 | MHz Crystal | 20MHz |
| 425F39E024M0000 | CTS晶振 | 425 | MHz Crystal | 24MHz |
| 425F39E025M0000 | CTS晶振 | 425 | MHz Crystal | 25MHz |
| 425F39E027M0000 | CTS晶振 | 425 | MHz Crystal | 27MHz |
| 425F39E030M0000 | CTS晶振 | 425 | MHz Crystal | 30MHz |
| 425F39E040M0000 | CTS晶振 | 425 | MHz Crystal | 40MHz |
| 425F35B026\M0000 | CTS晶振 | 425 | MHz Crystal | 26MHz |
| 425F35E026M0000 | CTS晶振 | 425 | MHz Crystal | 26MHz |
| 425F22A016M0000 | CTS晶振 | 425 | MHz Crystal | 16MHz |
| 425F22A016M3840 | CTS晶振 | 425 | MHz Crystal | 16.384MHz |
| 425F22A018M4320 | CTS晶振 | 425 | MHz Crystal | 18.432MHz |
| 425F22A019M2000 | CTS晶振 | 425 | MHz Crystal | 19.2MHz |
| 425F22A022M1184 | CTS晶振 | 425 | MHz Crystal | 22.1184MHz |
| 425F22A040M0000 | CTS晶振 | 425 | MHz Crystal | 40MHz |
| 425F37B016M0000 | CTS晶振 | 425 | MHz Crystal | 16MHz |
| 425F27C028M6360 | CTS晶振 | 425 | MHz Crystal | 28.636MHz |
| 425F11A016M0000 | CTS晶振 | 425 | MHz Crystal | 16MHz |
| 425F11A018M4320 | CTS晶振 | 425 | MHz Crystal | 18.432MHz |
| 425F11A019M2000 | 美國CTS晶體 | 425 | MHz Crystal | 19.2MHz |
| 425F11A019M6608 | CTS晶振 | 425 | MHz Crystal | 19.6608MHz |
| 425F11A020M0000 | CTS晶振 | 425 | MHz Crystal | 20MHz |
| 425F11A024M0000 | CTS晶振 | 425 | MHz Crystal | 24MHz |
| 425F11A024M5760 | CTS晶振 | 425 | MHz Crystal | 24.576MHz |
| 425F11A025M0000 | CTS晶振 | 425 | MHz Crystal | 25MHz |
| 425F11A026M0000 | CTS晶振 | 425 | MHz Crystal | 26MHz |
| 425F11A027M0000 | CTS晶振 | 425 | MHz Crystal | 27MHz |
| 425F11A028M6363 | CTS晶振 | 425 | MHz Crystal | 28.63636MHz |
| 425F11A030M0000 | CTS晶振 | 425 | MHz Crystal | 30MHz |
| 425F11A032M0000 | CTS晶振 | 425 | MHz Crystal | 32MHz |
| 425F11A036M0000 | CTS晶振 | 425 | MHz Crystal | 36MHz |
| 425F11A040M0000 | CTS晶振 | 425 | MHz Crystal | 40MHz |
| 425F11K016M0000 | CTS晶振 | 425 | MHz Crystal | 16MHz |
| 425F11K018M4320 | CTS晶振 | 425 | MHz Crystal | 18.432MHz |
| 425F11K019M2000 | CTS晶振 | 425 | MHz Crystal | 19.2MHz |
| 425F11K019M6608 | CTS晶振 | 425 | MHz Crystal | 19.6608MHz |
| 425F11K020M0000 | CTS晶振 | 425 | MHz Crystal | 20MHz |
